IOT LoRa Wireless Smart Door Magnet LoRaWAN Communication

Brand Name : TimeWave

Model Number : Single lamp controller(LoRa)

Certification : ISO/IEC 20000-1, ISO/IEC 27001,I SO/IEC 9001

Place of Origin : Hubei ,China

MOQ : Negotiable

Price : EXW US$ 20-80/set

Payment Terms : T/T, L/C

Supply Ability : 2000 set/week

Delivery Time : 3-5 weeks after receive the payment

Packaging Details : 20pcs/carton

Working temperature : 0～50℃

Wireless modulation mode : LoRa modulation

Battery life : 5 years

IP protection grade : IP64

Working voltage : 3.6V

Input power : AC220V 50Hz

Contact Now

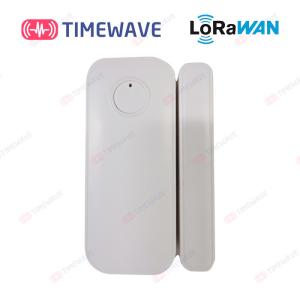

TIMEWAVE Smart IOT Door magnet(LoRa)

IOT LoRa Wireless Smart Door Magnet LoRaWAN Communication

Product Overview

LoRa wireless door magnet is a wireless door magnet that adopts LoRa communication technology and supports LoRaWAN wireless communication standard. It can realize remote door opening alarm, door closing prompt, door and window forgetting to close reminder and other functions. Compared with WiFi and Bluetooth door magnets on the market, this door magnet has significant advantages in communication distance, standby time (power consumption) and networking capacity.

Product features

1. Comply with LoRaWAN wireless communication standard, and the transmission distance can reach 1-2 km. Ultra low power consumption, sustainable use for 1 year.

2. It supports remote deployment and removal, and is easy to manage.

3. Replaceable battery design, simple maintenance.

4. The double-sided adhesive tape is applied to the doors and windows for convenient installation.

Main parameters of the product

Basic specifications	Operating frequency band	470MHz/433MHz
	Channel bandwidth	125kHz
	Transmitting power	17dBm
	Transmission distance	5km(Depending on time and distance)
	Receiving sensitivity	-132 dBm @(SF=11,125KHz)
	Communication standards	LoRaWAN
	Encryption mode	AES128
	Power Supply	2 No. 7 AAA batteries (replaceable)
	Working hours	1 year
	Indicator light	The flashing green indicator indicates that the normal operation information is reported. The flashing yellow indicator indicates that the alarm information is reported.
	Heartbeat interval	12h (the default value is configurable)
	Alarm interval	Emergency alarm (remind that doors and windows are not closed): 30s. General alarm (undervoltage, etc.): 2 h. The above are default values, which can be configured and adjusted.
	Multi function button	One click deployment and disarm.
	Size	955420mm(包含磁柱)
Other specifications	Working temperature	-10℃~50℃
Other specifications	Operating humidity	<95%
